« Back Home SolutionsSectional DoorsBrushless digital technologySeries ULKUL/1400/115
test

UL/1400/115

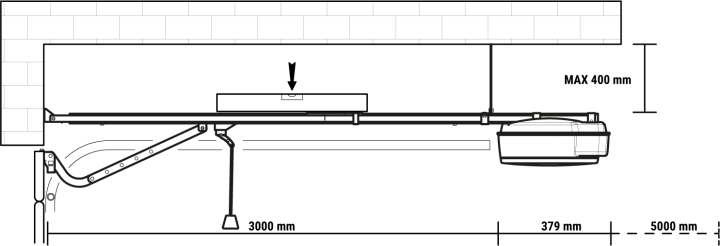

Electromechanical motor BRUSHLESS low voltage, super intensive use, irreversible, ideal for sectional doors with built-in digital controller B70 series. Compatible with UL series guides. With 2-channel radio receiver installed on board. 115V line power supply.

Power line supply:    115V AC - 60 Hz
Stand-by consumption:    ≤ 0,5W
Motor power supply:    36 V
Power rating:    210 W
Frequency of use:    Intensive use
Thrust:    290 N
Operating temperature:    -20+55°C
Protection level:    IP40
Reductor Type:    Irreversible
Manoeuvre speed:    4.1-22.1 cm/s
Onboard control unit:    B70/1THP
Encoder:    Digital magnetic encoder SENSORED, 4096 PPR
Maximum dimension product in mm (L x W x H):    Ø351 x 379 x 174
Product weight packed (Kg):    8,7
Number items per pallet/box:    36
LT314
Pair of optional fixing brackets.
RL654
Kit for external release with existing handle.

Download
technical manual
RL655
Kit for external release complete with handle.

Download
technical manual
LT324
Oscillating arm sliding on bearings for overhead and overflowing doors.

Download
technical manual

Size in cm: Lenght: 43 - Widht: 36 - Heigth: 18

Download
technical manual
