BRUSHLESS 24V DC - for 5 metre booms
WAY/005
Barrier BRUSHLESS 24V DC for booms up to 5 m, with control unit and and SENSORED digital magnetic encoder at 4096 PPR, complete with fixing plate with tie rods, screws boom fixing flanges.
New
Brushless
Digital Encoder
Residential sector
Industrial sector
Commercial sector
Parking
| Up to 5mt long | |
| 230V AC - 50 Hz | |
| 24V DC | |
| 0-15A | |
| 180W | |
| Continue | |
| 56 N m | |
| - 20 + 55 C° | |
| IP54 | |
| Irreversible | |
| 5÷17 sec | |
| B70/1T | |
| Digital native encoder + magnetic digital SENSORED, 4096 PPR | |
| 24V DC | |
| Cabinet: painted RAL9006 arabesque grey - Head: black arabesque silver painted - Boom support: plastic RAL9005 - Boom: painted RAL9010 matt | |
| Trilobal key | |
| Available (optional) | |
| No | |
| 2800 | |
| 325 x 211 x 1010 | |
| 45,5 | |
| 8 |

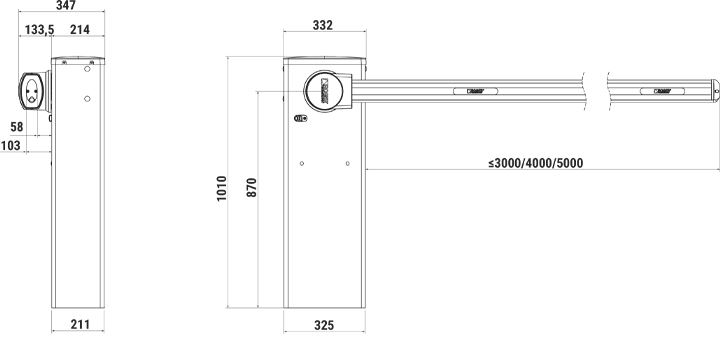

Dimensions
ALED/6C
6-metre LED strip with connection cable for barrier boom (red colour).
6-metre LED strip with connection cable for barrier boom (red colour).
KT231
Fixing plate for fixed supports codes BAFS/01, BAFS/02, BAFS/03, BAFS/04, BAFS/05.
Fixing plate for fixed supports codes BAFS/01, BAFS/02, BAFS/03, BAFS/04, BAFS/05.
BAFS/03
Fixed support with rubber, not adjustable, with predisposition for bolt, for booms.
Fixed support with rubber, not adjustable, with predisposition for bolt, for booms.
BAFS/04
Fixed support with rubber, adjustable telescoping, with predisposition for bolt, for booms.
Fixed support with rubber, adjustable telescoping, with predisposition for bolt, for booms.
BARK/02
Painted aluminum skirting, with stainless steel screws mounted on bronze bushings. Single module length 2 meters.
Painted aluminum skirting, with stainless steel screws mounted on bronze bushings. Single module length 2 meters.
B71/BC
Batteries charger for Brushless digital controller B70/1DC - B70/1T.
Batteries charger for Brushless digital controller B70/1DC - B70/1T.
HT418
External box without batteries, for battery BT12V45 (12V DC 4,5 Ah).
External box without batteries, for battery BT12V45 (12V DC 4,5 Ah).
CRA/BAR
Column for photocells G90/F2ES - G90/F4ES for spaced installation on a barrier cabinet (+23 cm).
Column for photocells G90/F2ES - G90/F4ES for spaced installation on a barrier cabinet (+23 cm).
R99/BASB20
Pack of 20 reflective adhesive stickers for boom barrier.
Pack of 20 reflective adhesive stickers for boom barrier.
CRA/BAR/M90
Column for photocells M90/F2ESO - M90/F4ESO for spaced installation on a barrier cabinet (+23 cm).
Column for photocells M90/F2ESO - M90/F4ESO for spaced installation on a barrier cabinet (+23 cm).

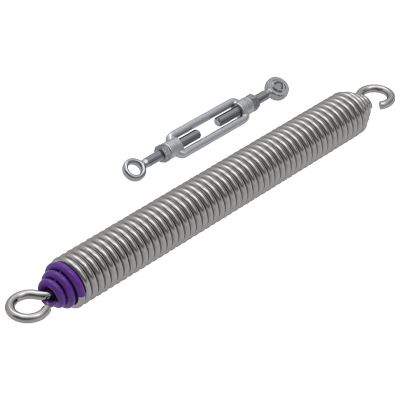

SP/56/G10
Spring diameter 56 mm only for WAY/005 with boom up to 5 m.
Spring diameter 56 mm only for WAY/005 with boom up to 5 m.
BA/75/5
White painted aluminum boom, 5 meters long, with LED cover profile and impact resisteng rubber profile.
White painted aluminum boom, 5 meters long, with LED cover profile and impact resisteng rubber profile.
Size in Cm: Lenght: 34,7 - Widht.: 24,1 - Heigth: 106,6
