BRUSHLESS 36V DC - boom up to 6 meters - Stainless steel AISI 304
BI/006/IS
Automatic Barrier BRUSHLESS 36V DC super intensive use up to 6 meters, with operator and and built-in digital control panel and absolute encoder on board. Version with housing unit made in brushed stainless steel AISI 304.
Brushless
Intensive use
Digital Encoder
Industrial sector
Commercial sector
| Up to 6 mt long | |
| 230V AC - 50Hz | |
| 36V DC | |
| max 15A | |
| 220W | |
| Super intensive use | |
| 10 - 300 N m | |
| - 20 + 55 C° | |
| IP54 | |
| Irreversible | |
| 4 ÷ 8 (sec) | |
| CTRL Digital Controller 36V DC | |
| Digital native encoder + magnetic digital SENSORED, 4096 PPR | |
| 24V DC | |
| Cabinet: brushed stainless steel AISI 304 - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt | |
| European Key cylinder | |
| Available (optional) | |
| Yes | |
| 4000 cycles | |
| 380 x 270 x 1237 | |
| 73,6 | |
| 6 |
Dimensions
KT230/IS
Fixing plate, inox AISI 304 version, with stay bolts and screws for BI/001PE - BI/001PC - BI/004HP - BI/006.
Fixing plate, inox AISI 304 version, with stay bolts and screws for BI/001PE - BI/001PC - BI/004HP - BI/006.
SP/83/01
Spring diameter 83 mm for barriers.
Spring diameter 83 mm for barriers.
ALED/12C
12-metre LED strip with connection cable for barrier boom (red colour).
12-metre LED strip with connection cable for barrier boom (red colour).
BA/90/3

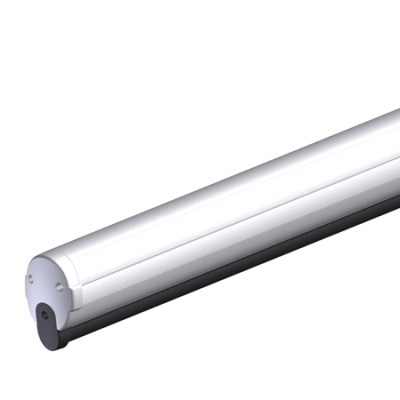

White painted aluminum rod, 3 meters long, with LED cover profile and impact resisteng rubber profile.
White painted aluminum rod, 3 meters long, with LED cover profile and impact resisteng rubber profile.
BA/90/4
White painted aluminum rod, 4 meters long, with LED cover profile and impact resisteng rubber profile.
White painted aluminum rod, 4 meters long, with LED cover profile and impact resisteng rubber profile.
BA/90/6
White painted aluminum rod, 6 meters long, with LED cover profile and impact resisteng rubber profile.
White painted aluminum rod, 6 meters long, with LED cover profile and impact resisteng rubber profile.
KT230
Fixing plate with stay bolts and screws for BI/001PE - BI/001PC - BI/004HP - BI/006.
Fixing plate with stay bolts and screws for BI/001PE - BI/001PC - BI/004HP - BI/006.
KT231
Fixing plate for code BAFS/01, BAFS/02, BAFS/03, BAFS/04, BAFS/05.
Fixing plate for code BAFS/01, BAFS/02, BAFS/03, BAFS/04, BAFS/05.
BAFS/01
Fixed support for bars.
Fixed support for bars.
BAFS/03
Fixing support with bolt predisposition for bars.
Fixing support with bolt predisposition for bars.
BAFS/02
Fixing support, adjustable.
Fixing support, adjustable.
BAFS/04
Fixing support adjustable, with bolt predisposition for bars.
Fixing support adjustable, with bolt predisposition for bars.
BAMS/01
Mobile support for bars.
Mobile support for bars.
JNT/BA/90
Internal boom bar joint in anodized aluminum including fixing screws for bars BA/90.
Internal boom bar joint in anodized aluminum including fixing screws for bars BA/90.
BARK/02

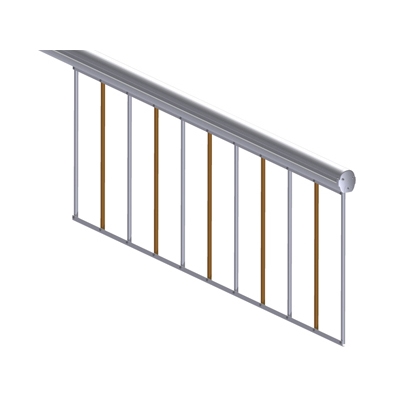

Barrier skirting in aluminum, with stainless steel screws mounted on bronze bushings. Single module of length 2 meters.
Barrier skirting in aluminum, with stainless steel screws mounted on bronze bushings. Single module of length 2 meters.
BT12V45
Battery 12V 4.5 Ah (1 pc).
Battery 12V 4.5 Ah (1 pc).
SP/85/01
Spring diameter 85 mm for barriers.
Spring diameter 85 mm for barriers.
DLD1/24
Loop detector for 1 loop, 2 output, 24V AC/DC.
Loop detector for 1 loop, 2 output, 24V AC/DC.
DLD2/24
Loop detector for 2 loop, 2 output + output alarm, 24V AC/DC.
Loop detector for 2 loop, 2 output + output alarm, 24V AC/DC.
BI/BAT/KIT
Kit for emergency batteries charger for brushless digital controller CTRL 36V DC with plug-in card, with 2 recovery batteries 12V DC, 4.5 Ah. Kit for BIONIK barrier.
Kit for emergency batteries charger for brushless digital controller CTRL 36V DC with plug-in card, with 2 recovery batteries 12V DC, 4.5 Ah. Kit for BIONIK barrier.
BI/BCHP
Plug-in card, batteries charger, for brushless digital controller CTRL 36V DC, without recovery batteries, for BIONIK barrier.
Plug-in card, batteries charger, for brushless digital controller CTRL 36V DC, without recovery batteries, for BIONIK barrier.
KT239
Kit DIN rail with magnetic support.
Kit DIN rail with magnetic support.
BAMS/01/EXT
Extension 20cm for mobile support BAMS/01.
Extension 20cm for mobile support BAMS/01.
BAFS/05
Adjustable fixed support with vandal-proof magnetic suction cup complete with B72/DGS demagnetizer card.
Adjustable fixed support with vandal-proof magnetic suction cup complete with B72/DGS demagnetizer card.
B73/EXP
Signal status board, 2 output for CTRL - CTRL/P
Signal status board, 2 output for CTRL - CTRL/P
KT242
Cable passage kit with magnetic support for barriers.
Cable passage kit with magnetic support for barriers.
CRA/BAR
Post for photocells G90/F2ES - G90/F4ES - for spaced installation on a barrier cabinet (+23cm).
Post for photocells G90/F2ES - G90/F4ES - for spaced installation on a barrier cabinet (+23cm).
R99/BASB20
Pack of 20 stickers for barrier.
Pack of 20 stickers for barrier.
B74/BCONNECT
Module WI-FI B-CONNECT - Remote management and programming system in IP and CLOUD web browser mode via Wi-Fi hot spot P2P connection for Brushless control units (B70/2ML - EDGE1 - CTRL - CTRL/P - B70/1DCHP).
Module WI-FI B-CONNECT - Remote management and programming system in IP and CLOUD web browser mode via Wi-Fi hot spot P2P connection for Brushless control units (B70/2ML - EDGE1 - CTRL - CTRL/P - B70/1DCHP).
B71/PBX36/BOX/115
Hybrid inverter, “Network Assisted” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels or mains supply for powering the 36V DC brushless digital controllers with a mains voltage of 115V AC.
Hybrid inverter, “Network Assisted” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels or mains supply for powering the 36V DC brushless digital controllers with a mains voltage of 115V AC.
B71/PBX36/BOX
Hybrid inverter, “Network Assisted” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels or mains supply for powering the 36V DC brushless digital controllers with a mains voltage of 230V AC.
Hybrid inverter, “Network Assisted” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels or mains supply for powering the 36V DC brushless digital controllers with a mains voltage of 230V AC.
B71/PBX/BOX
Hybrid inverter, “Full Solar” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels for powering the brushless digital controllers.
Hybrid inverter, “Full Solar” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels for powering the brushless digital controllers.
B73/LTM
RGB boom light and traffic light control device for CTRL.
RGB boom light and traffic light control device for CTRL.
ALED/12C/RGB
12-metre RGB LED strip with connection cable for barrier boom.
12-metre RGB LED strip with connection cable for barrier boom.
BI/BLED/6/RGB
RGB LED strip with connection cable for BI/004HP - BI/006 - BI/001PE - BI/001PC barrier header.
RGB LED strip with connection cable for BI/004HP - BI/006 - BI/001PE - BI/001PC barrier header.
CRA/BAR/M90
Post for photocells M90/F2ESO - M90/F4ESO for spaced installation on a barrier cabinet (+23 cm).
Post for photocells M90/F2ESO - M90/F4ESO for spaced installation on a barrier cabinet (+23 cm).

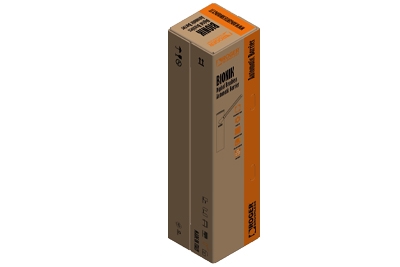

Size in Cm: Lenght: 1187 - Widht.: 292- Heigth: 297
