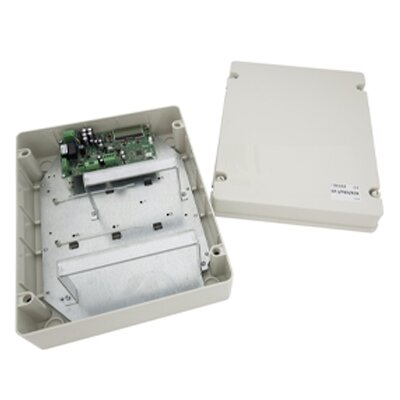

B71/PBX/BOX

B71/PBX/BOX

Hybrid inverter "Full Solar" version for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels for powering the Brushless digital controllers.
Power line supply: ONLY solar panel
Operating temperature: -20°C +55°C
Protection level: IP66
Compatible digital controllers: Brushless 24V DC - Brushless 36V DC
backup batteries (not included): Brushless 24V DC: 2 x 12V DC - Brushless 36V DC: 3 x 12V DC - USE ONLY AGM BATTERIES TYPE - 12Ah
Number of photovoltaic panels that can be connected: 2
Minimum power (photovoltaic panel): 60W
Maximum voltage from a photovoltaic panel (not charged): 22V DC
Minimum voltage from a photovoltaic panel (charged): 18V DC
Maximum dimension product in mm (L x W x H): 310 x 120 x 390
Product weight packed (Kg): 3,7
Number items per pallet/box: 30

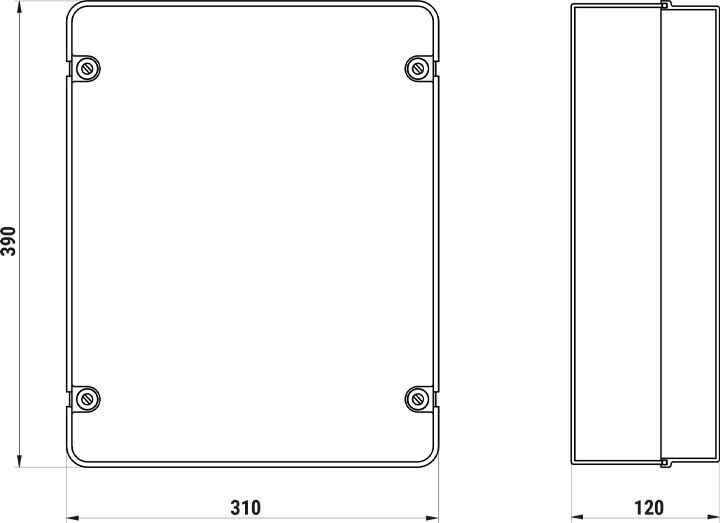

Dimensions

Dimensions

Dimensions

Accessories

BT12V45

BT12V45

Battery 12V 4.5 Ah (1 pc).
BT12V70

BT12V70

Battery 12V 7 Ah (1 pc).
BT12V120

BT12V120

Battery 12V 12 Ah (1 pc).
B75/SLP/30

B75/SLP/30

30W solar panel measures 625x350x25 mm
B75/SLP/50

B75/SLP/50

50W solar panel measures 685x515x25 mm
