Power line supply:    230V AC - 50Hz
Motor power supply:    230V AC
Power rating:    200W
Frequency of use:    30%
Torque:    300 N m
Operating temperature:    -20+55°C
Protection level:    IP67
Reductor Type:    Irreversible
Manoeuvre speed:    1,2 Rpm
Opening time at 90°:    19 s
Motor thermal protection:    150°C
Limit switch:    Mechanical stoppers
Encoder:    Optional as an accessory
Maximun opening:    105° (optional 125° - 360°)
Power supply cable length:    2m
Bearing on main shaft:    Standard
Maximum dimension product in mm (L x W x H):    345 x 224 x 144
Product weight packed (Kg):    14,1
Number items per pallet:    50
Dimensions
Dimensions
FU100
Cold galvanised foudation box and lid.
FU101
Hot galvanised foundation box and lid.
FU102
Hot galvanised foundation box and inox lid.
FU103
Inox AISI 304 foundation box and lid.
LT300
Levers for opening up to 125°.
LT301
Levers for opening up to 360°.
RL650
Release system with standard lever.
RL651
Release system with european cylinder key.

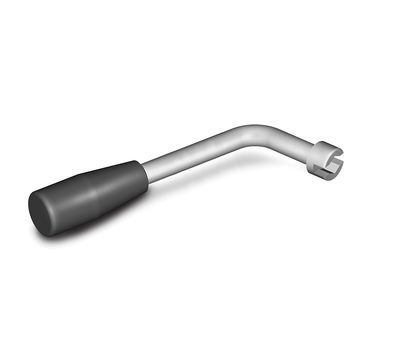

RL663
Long release lever for underground.
R99/C/001
Signboard "Automatic Opening".
LT301/R
Levers for opening up to 360° , with reinforced chain.
RL650/R
Release system with standard lever,reinforced steel version.

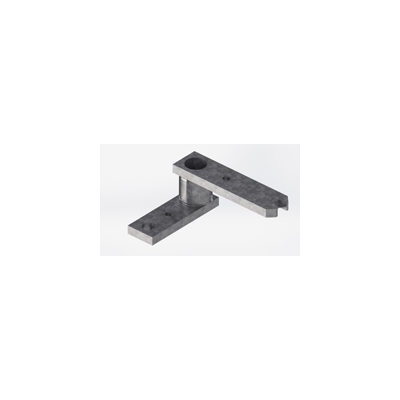

LT300/90SX
Levers for opening up to 103° - 90° turned - left.

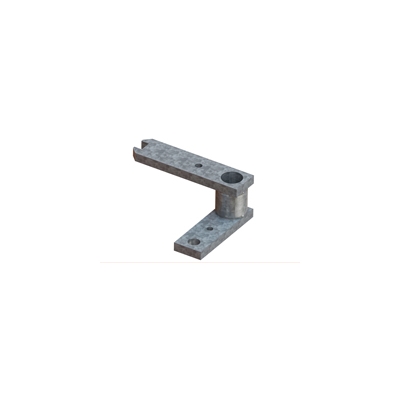

LT300/90DX
Levers for opening up to 103° - 90° turned - right.
LT327/SC
Pinion gear ¾ Z13 of adaptation in pinion ombining ¾ Z16.
R21/ENC/2
Module encoder for R21 series with 2 mt cable.

Size in cm: Lenght: 38.5 - Widht. 23,5 - Heigth. 16

R21/351

Electromechanical underground motor 230V AC irreversible ideal for swing gates with leaf up to 3,5 mt. Standard version with 2 mt cable.
